Hot Sale Wallbox Electric Car Charger 22kw For Car
* Compact design

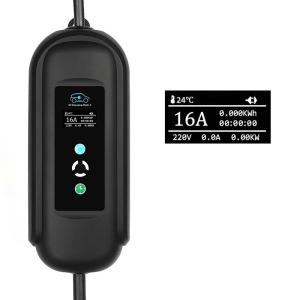

Attractive appearance, 7‘ LCD screen, simple but elegant.
* Full protection
Full electrical protection, over/under temperature protection, Protection
against lightning, leakage, short circuit, over current, etc.
* Stable
IP65 protection grade, capable for harsh environment, salt-mist condition.
* Intelligent
4G/ethernet/Wifi/ Background monitoring, RFID/QR payment support.
* European standard
OCPP v1.6 standard open communication protocol, IEC62196-2 type 2 connector.
* Easy to install and operation
Wall-mounting or pole-mounting optional.
|
No
|
Item
|
Data
|
No
|
Item
|
Data
|
|
1
|
Rated input voltage
|
single-phase 220vac
|
9
|
Working temperature
|
-20℃-55℃
|
|
2
|
Max. input current
|
40A
|
10
|
Working humidity
|
5%-95%
|
|
3
|
Rated output voltage
|
220Vac
|
11
|
Working altitude
|
＜2000m
|
|
4
|
Rated output current
|
32A
|
12
|
Applicable environment
|
Indoor/Outdoor(IP54 water-proof and dust-proof)
|
|
5
|
Power consumption
|
2W
|
13
|
Noise control
|
≤60dB
|
|
6
|
Network type
|
4G/wifi/Ethernet/single machine
|
14
|
Working frequency
|
13.56Mhz
|
|
7
|
Mode pf charging
|
Fixed quantity/fixed amount/fixed time
|
15
|
Distance for swiping card
|
0-50mm
|
|
8
|
Term of payment
|
card/wechat pay/Ali pay/Bestway
|
16
|
Length of charging port
|
5m
|
To prevent damage to your charger from liquids, please avoid the following situations :
1. Exposing the charger to pressurised water or high velocity water flow.
2. Intentionally submerging the charger in water.
3.Operating the charger beyond the recommended temperature range or in extremely humid environments
4. Dropping the charger or subjecting it to other shocks.
5. Disassemble the charger, including removing the screws.
If the charger comes into contact with liquid, turn off all power until it is completely dry.
Placing the unit in front of a fan so that cold air is blowing directly on the charging connector may help to speed up the drying process.
Do not use an external heat source to dry the charger, or insert foreign objects such as cotton swabs or paper towels into the charging port.
